Click on the Display plot styles check box.

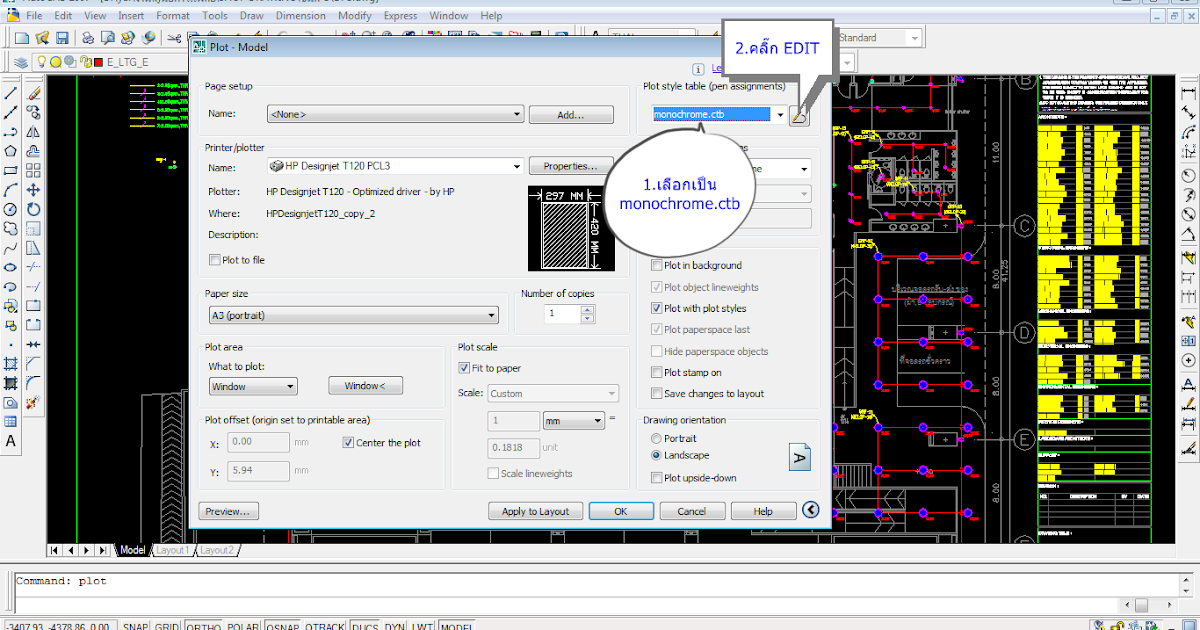

Under Plot Style Table tab, choose the plot style table you wish to assign to the layout.

Click on the layout tab to which you wish to assign a specific plot style table.

To assign a plot style table to a layout:

(For example, under Properties / Color, choose Black.)Īssigning a plot style table to a layout.Īssigning a plot style table to a layout forces AutoCAD to follow the instructions in the table. (To select every color in the list simultaneously, hold down the SHIFT key as you click on the first and last colors in the list.)

Specify the colors for which you wish to designate printing attributes.

#Export autocad plot style pdf

This will display information about your table as a form. In the right side of the export menu, you can select a certain PDF preset (AutoCAD PDF: General Documentation, High. To continue with our example, choose the Form View tab.

In the Plot Style Table Editor, you can view information about your table in three separate tabs.

Double-click on the name of the plot style table you wish to edit.

Invert this process on the second computer. > Print > Manage Plot Styles then hold down the Shift key as you drag-and-drop the desired table to an external drive. (The next section discusses the detail of editing plot style tables.)

In the “Add Plot Style Table – Finish” dialog box, click “Finish”.

In the “File name” dialog box, enter a name for your plot style (for example, “Style-1”) and click Next.

In the “Pick Plot Style Table” dialog box, select “Color-Dependent Plot Style Table” and click Next.

In the “Begin” dialog box, select “Start from scratch” and click Next.

In the introductory dialog box, click Next.

Double-click on the Add-A-Plot Style Table Wizard icon.

To create a color-dependent plot style table: Under this scheme, plot style is an object property, like color or lineweight. Named plot styles allow a greater degree of freedom than color-dependent plot style tables, in the sense that printing properties may be assigned separately from object color.

#Export autocad plot style professional

This is typically how professional offices set up plot style tables, because it is equivalent to the Pen Assignments feature in older versions of AutoCAD. Named plot style tables instruct AutoCAD to assign plotting properties to objects independent of their color.Ĭolor-dependent plot style tables are primarily useful for one reason: they can be used to assign printed line weights on the basis of color. For example, a color-dependent plot style table might instruct AutoCAD to assign every red object in a printout a given line width. Color-dependent plot style tables instruct AutoCAD to assign plotting properties based solely on object color. Plot style tables are of two types: color-dependent and named. Plot style tables are assigned to layouts each layout can have a different plot style table (or no plot style table at all, meaning that no special instructions are used to print the drawing). A plot style table is a set of plot styles. Plot styles can override object settings: for example, a plot style might instruct AutoCAD to print all objects in a drawing using black ink, rather than object/layer colors.

#Export autocad plot style how to

A plot style is a set of instructions telling AutoCAD how to print objects. 70 Using the Ortho mode and Polar Tracking. Table of Contents Title Page Table of Contents Preface The author and publisher are not associated with any product or vendor mentioned in this book.įor Technical Support, contact us at:, For Resource files, please visit: Trademarks: All brand names and product names used in this book are trademarks, registered trademarks, or trade names of their respective holders.

Neither the publisher nor the author shall be liable for damages arising here from. The advice and strategies contained herein may not be suitable for every situation. Limit of Liability/Disclaimer of Warranty: The author and publisher make no representations or warranties with respect to the accuracy or completeness of the contents of this work and specifically disclaim all warranties, including without limitation warranties of fitness for a particular purpose. Making copies of this book or any portion for purpose other than your own is a violation of copyright laws.
